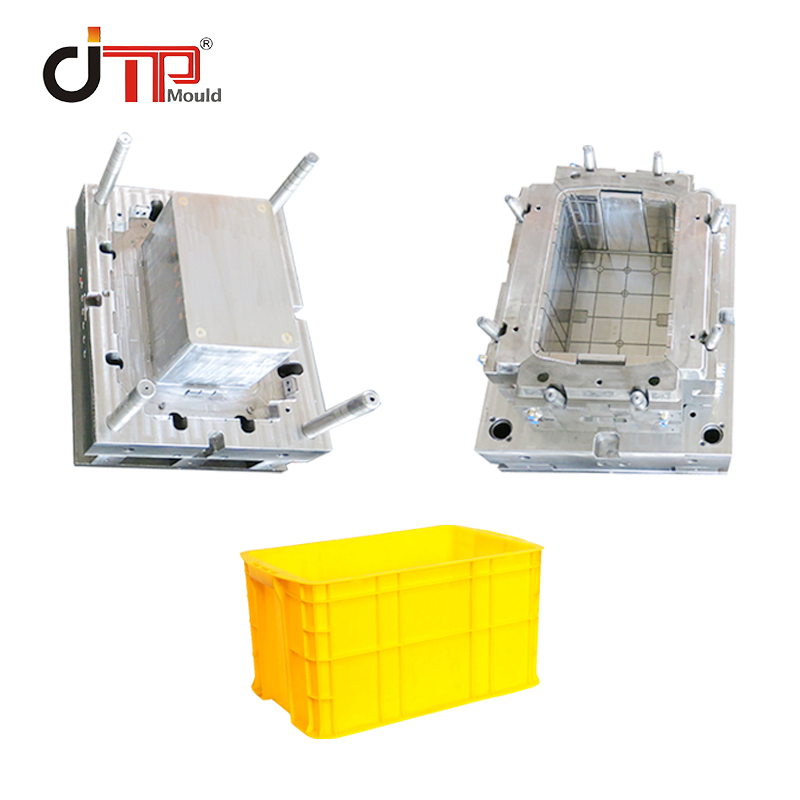

Plastic Crate Mould Manufacturer - JTP Mould

Plastic crate moulds are large and medium-sized moulds with weight over 2 Tons, and it has four sliders, so the manufacturing cost is a bit high.

But in JTP mould factory there can be a different story...

When designing, we use the flow analysis software(mold flow) to analyze, this will increase the success of crate mould design and manufacturing, thus ensuring the quality of plastic crate parts.

Our plastic crate mould use hot runner technology, which can optimize the crate mould structure, shorten the cycling time, our plastic circulation box mould uses the mechanical ejection way, this can guarantee the reliable movement of the mould, ensure a long service life.

By optimizing our plastic crate moulds structure, the benefits that buyers can get:

1. Light in weight and small in size plastic crate mould

It is only 1/3 of the cold runner and the machine is a lateral parting mould, which can reduce the cost of mould building.

2. Compact structure plastic crate mould

our crate mould has a compact structure and reliable operation. The reset time of this mechanism can be flexibly adjusted.

3. Increase the usage of plastic crate mould

our crate mould could reduce reground material, improved the quality of crate, and improve the utilization of materials.

4. Reducing the cooling time plastic crate mould

our crate mould Reduce the cooling time and thus shorten the molding cycle. The cooling time usually accounts for 80% of the entire cycle time of the crate mould, reducing the cooling time can greatly increase productivity.

Crate mould steel suggestions:

1. The mould base p20 steels. cavity and slides 718H. Such crate moulds can have 1 million shots times.

2. The mould base  45 steel and the steel cavity and slide p20. Such a crate mould can produce 500,000 shots.

3. It is also possible to use all 45 steel to make crate mould.

Topworks care mould sprcification:

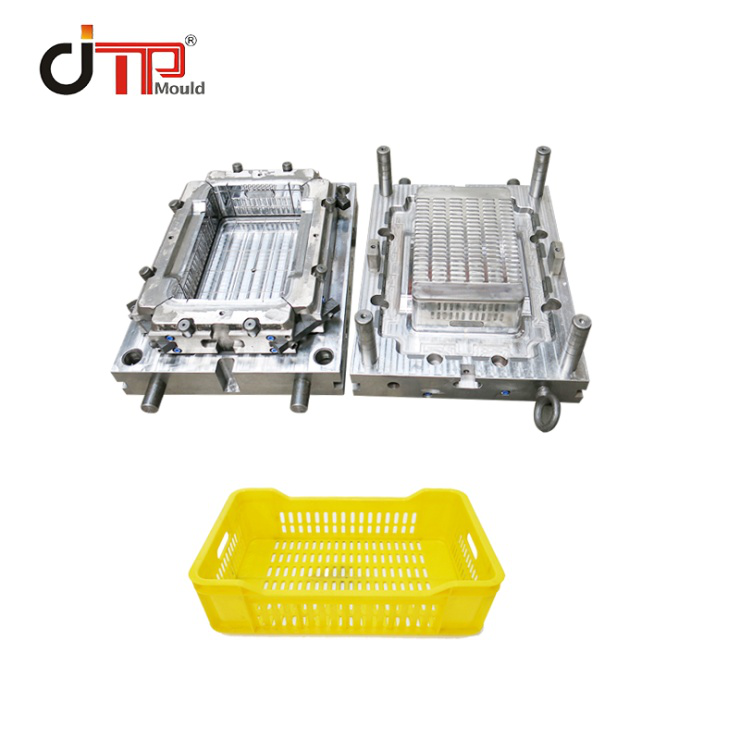

plastic crate mold

Cavity: 1

Hotrunner: 4 drops with “HOTSET”  heating coils

Mold cavity steel: DIN 718H

Mold slider steel: DIN 718H

Plastic material: HDPE

Cycle time: 38Sces-45 Secs

Delivery time: 40 days-60days.

Maintenance of the crate mould:

1. Clean the crate mould surface for the oil, rust, check mould cooling hole for foreign material.

2. Check the sprue if there is residual material.

3. Check the fixed mould plate and confirm if the screw clamp is tightened.

4. After crate mould fixed on the injection moulding machine, injection operation should be carried out first. Observe the movement of each part of the operation: whether there is an abnormal phenomenon, the movable parts such as the guide pins, the ejection pins, sliders whether there is wear, lubrication is good, the stroke…

Plastic crates moulds we have been made contains milk crate mould, fruit crate mould, bread crate mould, vegetable crate mould, fish crate mould, beer crate mould, foldable crate mould and so on.

If you are the one looking for plastic injection crate molds supplier in China, please feel free to contact me!!!
